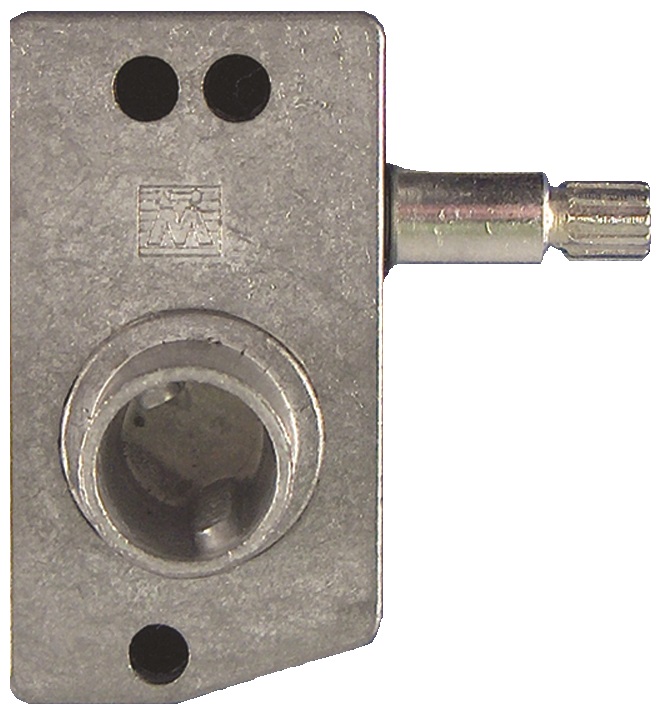

Jalousie Window Operator Hehr 3600 (11/16″ Projection)

Jalousie window operator (for Hehr 3600 series). Strybuc 1718P (right hand) 1719P (left hand).

To determine left or right hand: if looking at the window from the inside and the crank handle is on the right, you’ll need the right hand model. If the crank handle is on the left, you’ll need the left hand model.

Specification:
1/2″ inner diameter hole
11/16″ hub projection
2-3/16″ tall
1-3/16″ wide
1/2″ thick
Accepts 1/2″ diameter torque bar
Mounting holes approximately 1-3/4″ apart

For installation instructions, please visit Camping Treasures

*While these window operators are brand new, we have learnt that the internal gears are made from a softer metal than the originals. As such, this can lead to mashing of the operator gears if the crank or pane is forcefully moved.

Unfortunately these operators, manufactured by Strybuc, are the only ones we can find on the market to replace the old ones. We therefore recommend you ensure the window pane moves freely and unobstructed to avoid over exertion of the internal gears. Never forcefully close the pane or apply too much pressure to the crank. If the crank does not move freely and with ease, then consider first what might be hindering it’s free movement. Due to the nature of the internal mechanisms, our ability to provide replacements/refunds is limited for this item*
